43' Robin Hood

Custom Hull #
53
Splash Date
June 2014

Making the most out of all spaces, the mezzanine not only serves as a comfort station complete with an ice maker and drink coolers, it also offers bait storage and functions as an aft helm station with pod joystick controls in a recessed compartment. The cabin is dual-functioning with the helm and salon space wrapped in the richness of custom book-matched cherry veneer and trim accents. Power comes from a compact pair of 600hp Cummins QSC motors and C-9 Zeus pods which provide space for a second stateroom below the salon.

Specs
Length
43' 0"
Beam
14' 6"
Draft
3' 10"
Water Line
39' 0"
Cockpit Area (sq. ft.)
96
Dry Weight (lbs.)
29,770
Fuel Capacity (gal.)
620
Water Capacity (gal.)
100
Holding Tanks (gal.)
35
Power
Engine(s)
Cummins
Model
QSC8.3
Horsepower
600x2
Propulsion
Zeus Pods
Performance
Cruise Speed (kts.)
31.8
Cruise Fuel Burn
44.6
WOT Speed (kts.)
36.8
Power

43 Engine Room

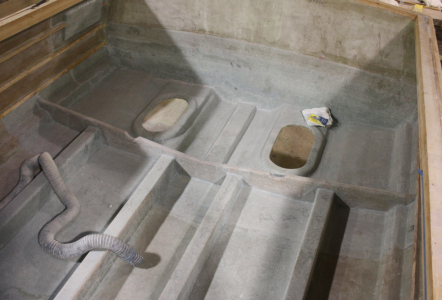

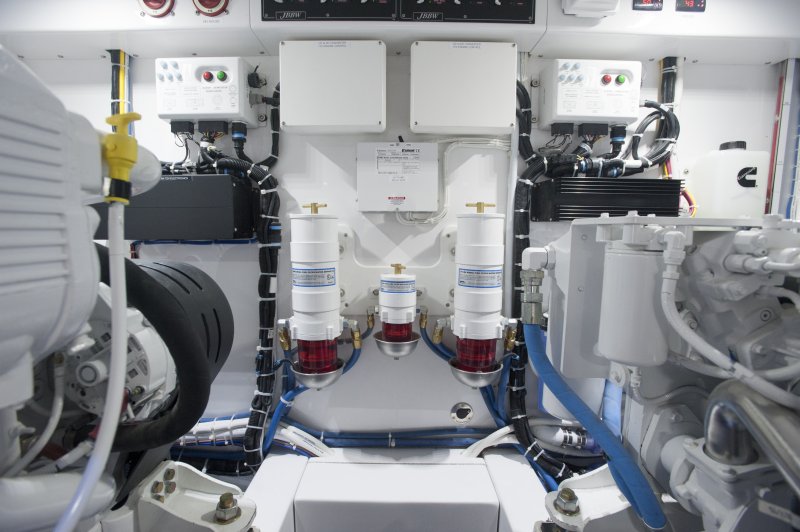

Raising the cockpit floor, an Alexseal® premium yacht finish adorns one of the most accessible engine room spaces for a boat of this size. In addition to the power package & pod drive system, an ISO boost unit, watermaker and Cummins Onan Generator are all positioned for convenient reach.

Interior Layout

43 Interior

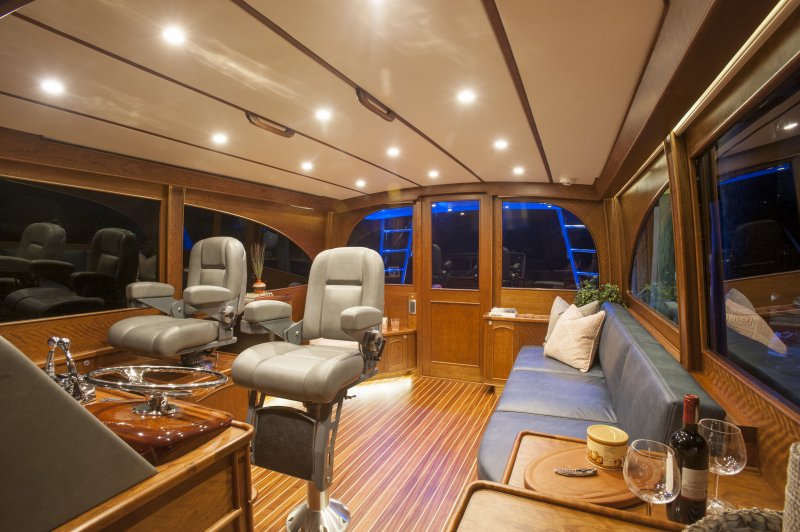

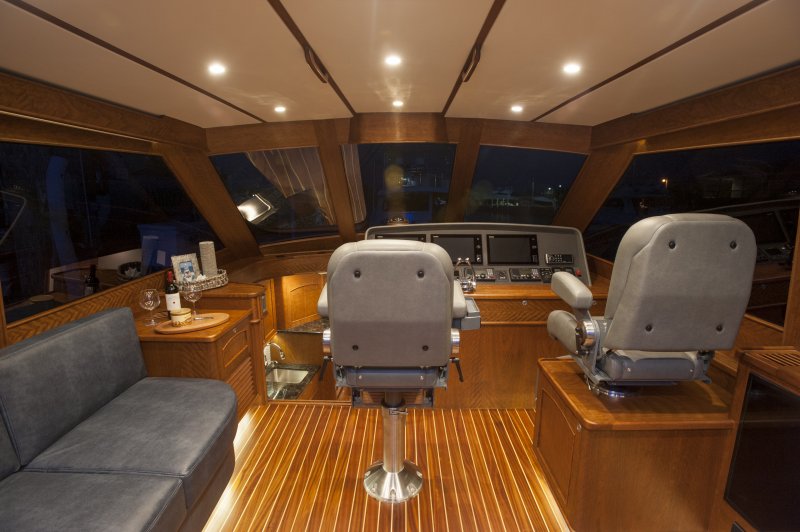

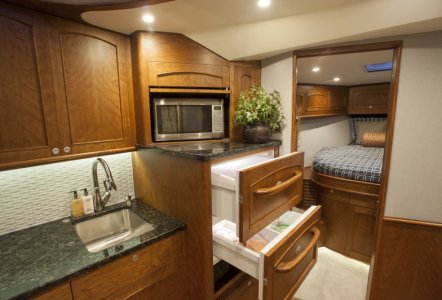

Walking in the cabin door, you step into a dual-functioning helm and saloon space wrapped in the richness of custom book-matched cherry veneer and trim accents. Notably used by Cadillac as their interior accent wood for its perfect balance of luxury and durability, Sapele is matched with maple on the floors with a satin finish throughout. Sapele lumber runners are also used in the headliner to provide a luxurious accent, and to help make the cabin space feel even larger. Two Stidd helm chairs with a matching electronics dash wrap are the foundation for the interior driving station with pod joystick controls. Guests can keep the captain company in a Jarrett Bay signature bucket seat and sofa with dry storage underneath; or lend a hand in the well-appointed galley with hidden Sub-Zero refrigerator/freezer units, a hidden microwave and maximized storage space and cabinetry.

Built with Canyon overnighters and extended Caribbean cruising in mind, the Jarrett Bay 43 HTX comfortably sleeps four in a forward queen berth stateroom and a side-by-side bunk room beneath saloon. This unique bunk room bonus space is afforded due to the smaller footprint needed for the engine room thanks to the compact pod drives. The queen bed lifts for custom rod storage, and hanging and storage lockers are found centrally and on the outboard hull sides.

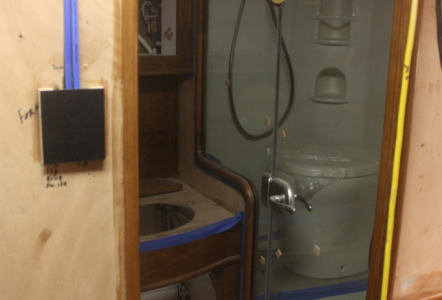

Keeping things custom all the way into the head, here you will find a hand-carved, high-gloss Sapele sink and matching counter top, custom wallpaper and a teak trimmed, seamless glass shower entrance.

Cockpit Layout

43 Cockpit

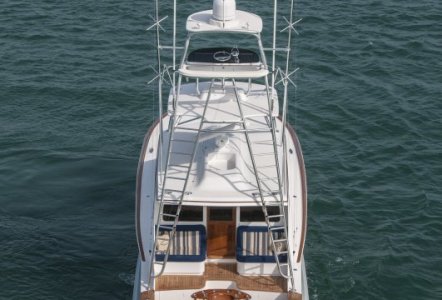

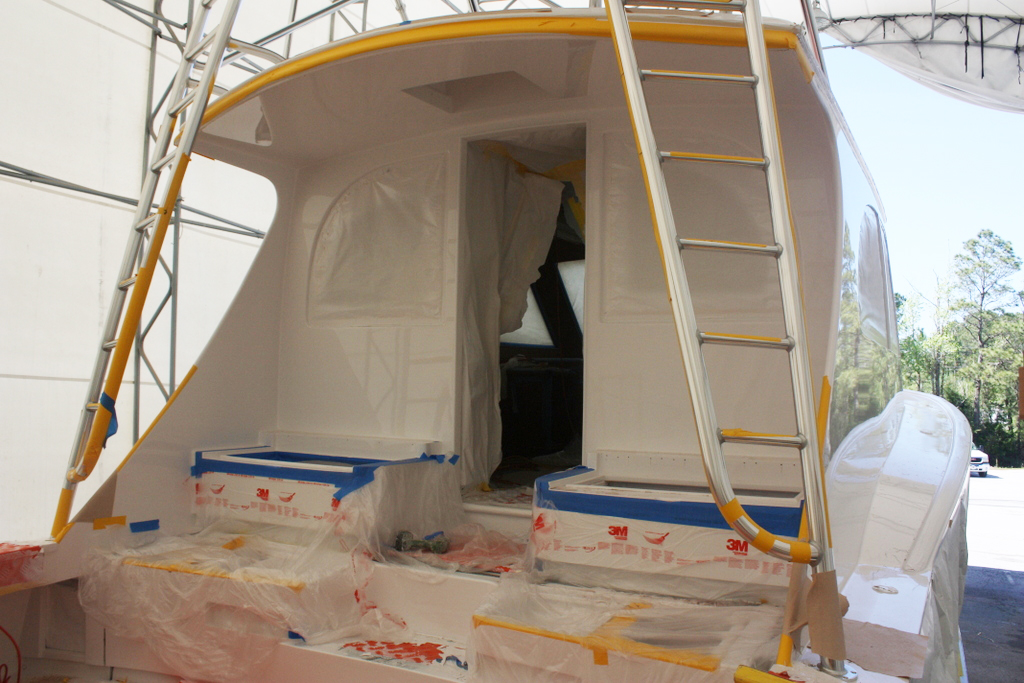

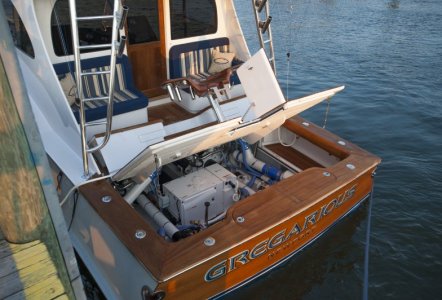

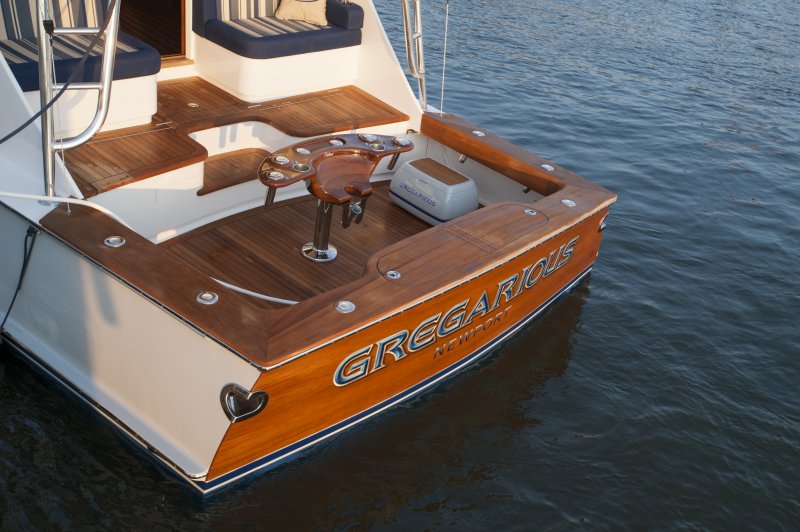

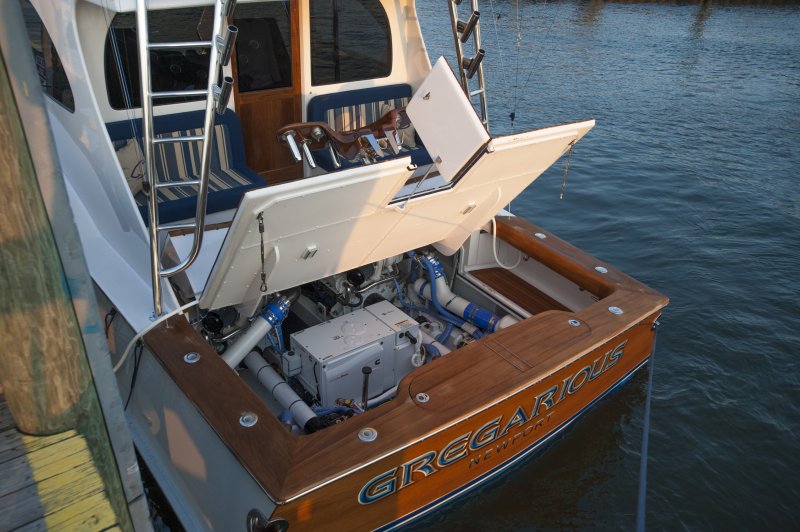

With an intent focus on the business-end of this Jarrett Bay, the owner & captain’s cockpit order definitely did not fall short on any detail. Ensuring access to the twin 600hp Cummins QSC motors and Zeus pod drives did not encroach on deck space, the 43HTX’s hydraulic cockpit decklift delivers in both form & state-of-the-art function. Making the most out of all spaces, the mezzanine not only serves as a comfort station complete with an ice maker and drink coolers, it also provides bait storage and functions as an aft helm station with pod joystick controls in a recessed compartment . Also serving double-duty is the stern fishbox that doubles as a live well. Keeping the aft deck space clear of clutter from head to toe, the electric teaser reels are flush mounted into the cabin overhang, and a low-footprint Release Marine Battle Saddle perfectly complements Jarrett Bay’s finely crafted teak cockpit accents, as well as the custom metal, CNC-cut Jarrett Bay logo drain covers.

Extras

43 Extras Layout

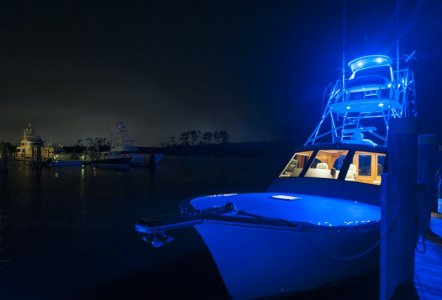

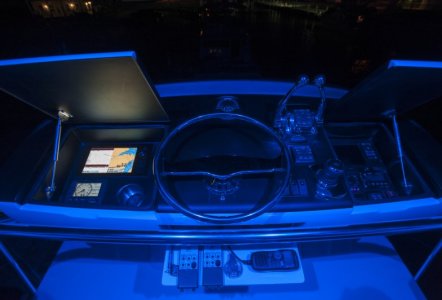

Look down after dusk, and you’ll find your own aquarium forming around custom underwater transom LED lights. Walk forward safely using a hidden finger rail on the cabin sides to access the custom anchor pulpit and windlass, and look back at the wide-view wrap-around windows with wipers for maximum visibility in unfavorable conditions. Look up to find FLIR technology, custom LED tower lights, pod joystick controls, teaser reel remote, and actuated storage drawers all conveniently accessible in the buggy top.

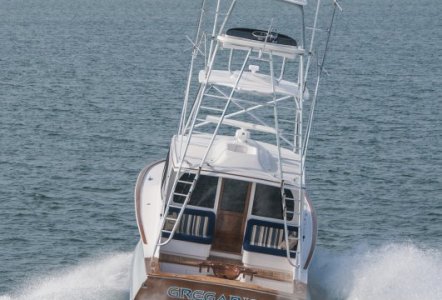

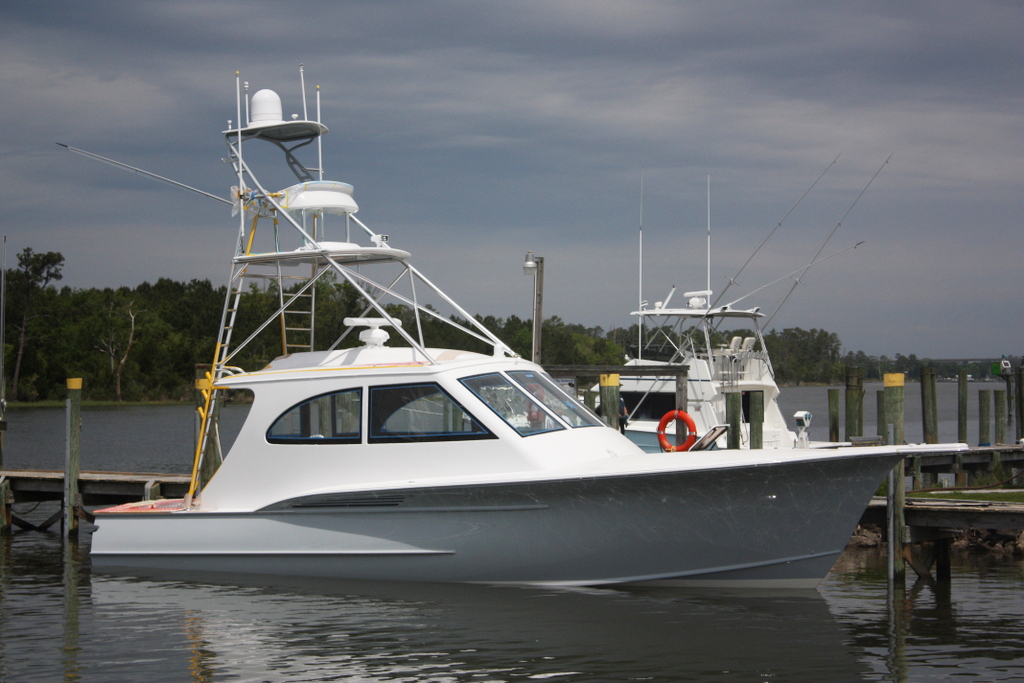

Wrapping it all up in a shiny Alexseal Kingston Grey coated hull, a Josh Everett Nautical Designs hand-painted transom, and topped off with a custom buggy top, the “Gregarious” is ready to share the quality, passion and dedication of Jarrett Bay’s custom Carolina construction with all she may encounter.
