56′ Renegade

Custom Hull #
67
Splash Date
July 2022

“Renegade” may look like a 56-foot convertible sportfish with a traditional flybridge, but upon closer inspection, you’ll find an additional lower helm station and convertible bulkhead that makes her a unique hybrid with the ability to transform into a hardtop express; AKA “The Swiss Army Knife of Billfishing.”

Jarrett Bay’s legendary ride characteristics and performance are complemented by a pair of high-tech MTU 10V-2000 M96 engines rated at 1,600mhp each, and stabilized by a larger Seakeeper 18 gyro stabilizer.

The breathtaking finishes and custom features of Jarrett Bay’s latest masterpiece are joined by a truly unique open convertible concept designed in-house and brought to life by Jarrett Bay’s experienced craftspeople and shipwrights.

Specs
Length
55' 6"
Beam
17' 6"
Draft
4' 6"
Water Line
49' 4"
Dry Weight (lbs.)
61,000
Gross Weight (lbs.)
70,000
Fuel Capacity (gal.)
1,200
Water Capacity (gal.)
250
Power
Engine(s)
MTU
Model
10V-2000
Horsepower
1,600
Propulsion
Conventional
Stabilization
Seakeeper 18
Genset
MTU
Kilowatts
25
Performance
Cruise Speed (kts.)
34
Cruise Fuel Burn (gph)
120
WOT Speed (kts.)
40
WOT Fuel Burn (gph)
172
Interior Layout
Jarrett Bay 56

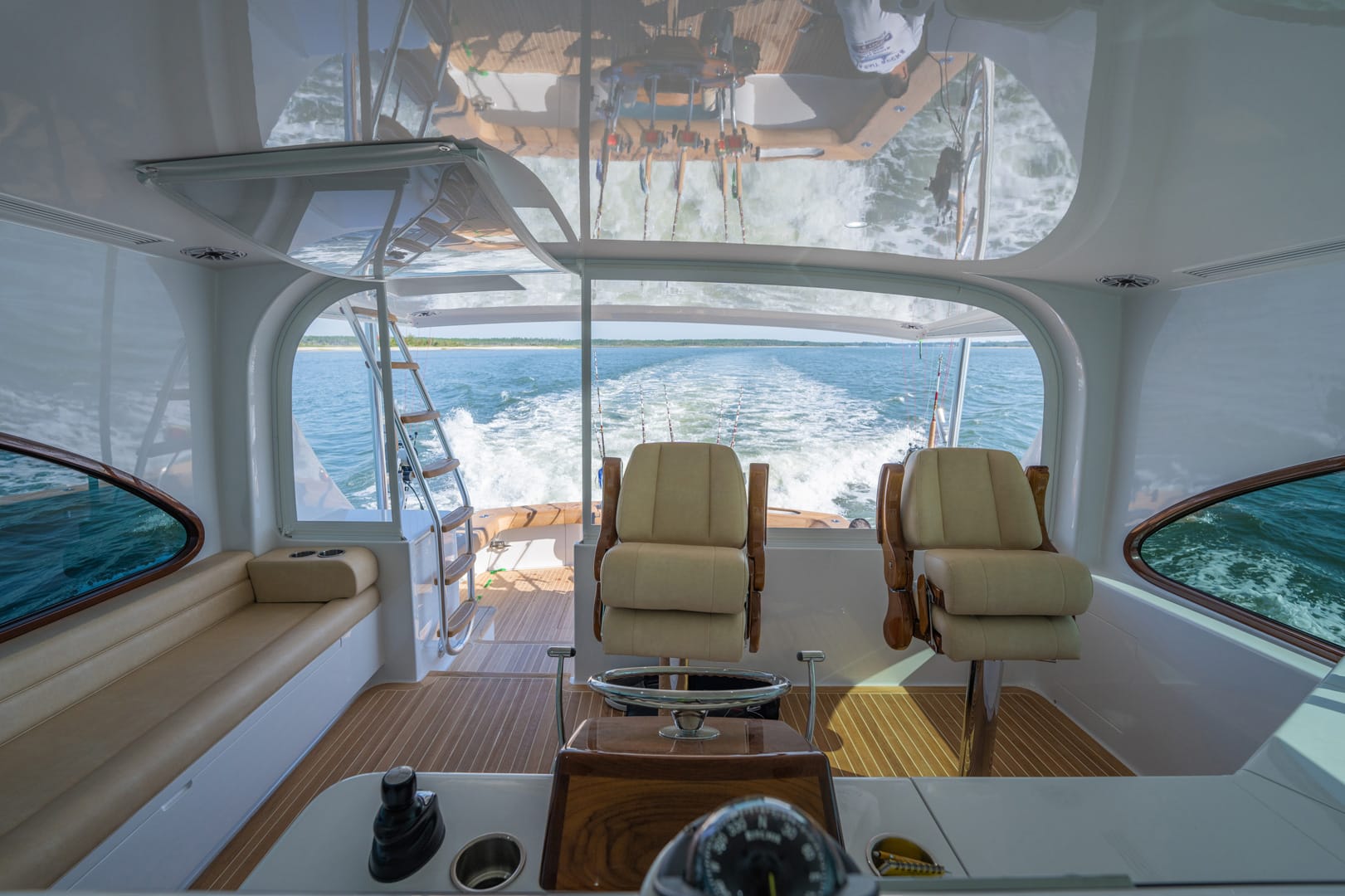

The lower helm station features a large peninsula console extending from the port side with three 22-inch Garmin displays and a full electronics package from Atlantic Marine Electronics (AME). Forward of the peninsula is a spacious dinette with integrated storage for rods up to 8 feet in length. The dinette boasts a custom hi-low pedestal from Marine Tables that converts the dinette to a daybed or additional overnight sleeping accommodations.To starboard, on the lower bridge level is a lounge seat with plenty of dry storage underneath and a wet bar with an under-counter Sub-Zero unit, built-in bottle storage and a hidden Samsung 50-inch Smart TV that electronically rises from the cabinet to face everything aft.

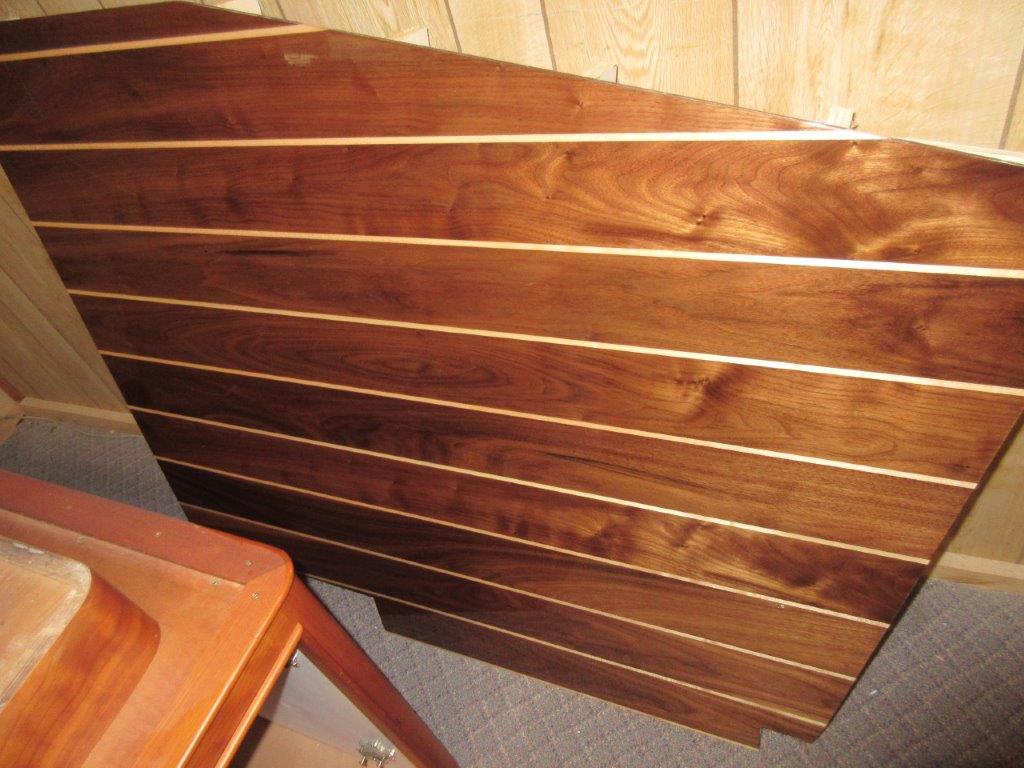

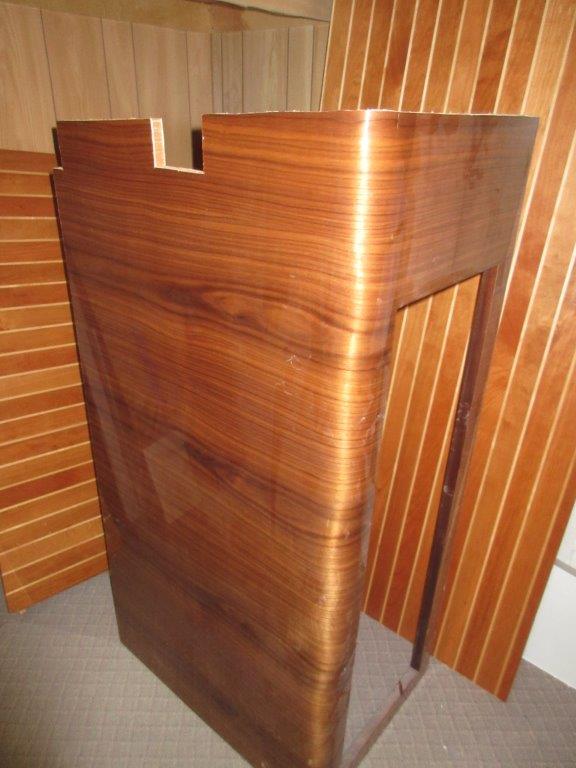

The arrangement in the lower level is a two-stateroom, single-head layout wrapped in a high-gloss walnut finish with exotic Terra Wave accent pieces. Jarrett Bay’s handmade walnut and maple flooring extend throughout this space which includes a highly functional galley with a full-size Sub-Zero refrigerator and freezer, a Wolf induction cooktop, Bosch microwave and an abundance of storage. Additional built-in rod storage and tackle center with ample storage are also located on the lower level.

Cockpit

Jarrett Bay 56

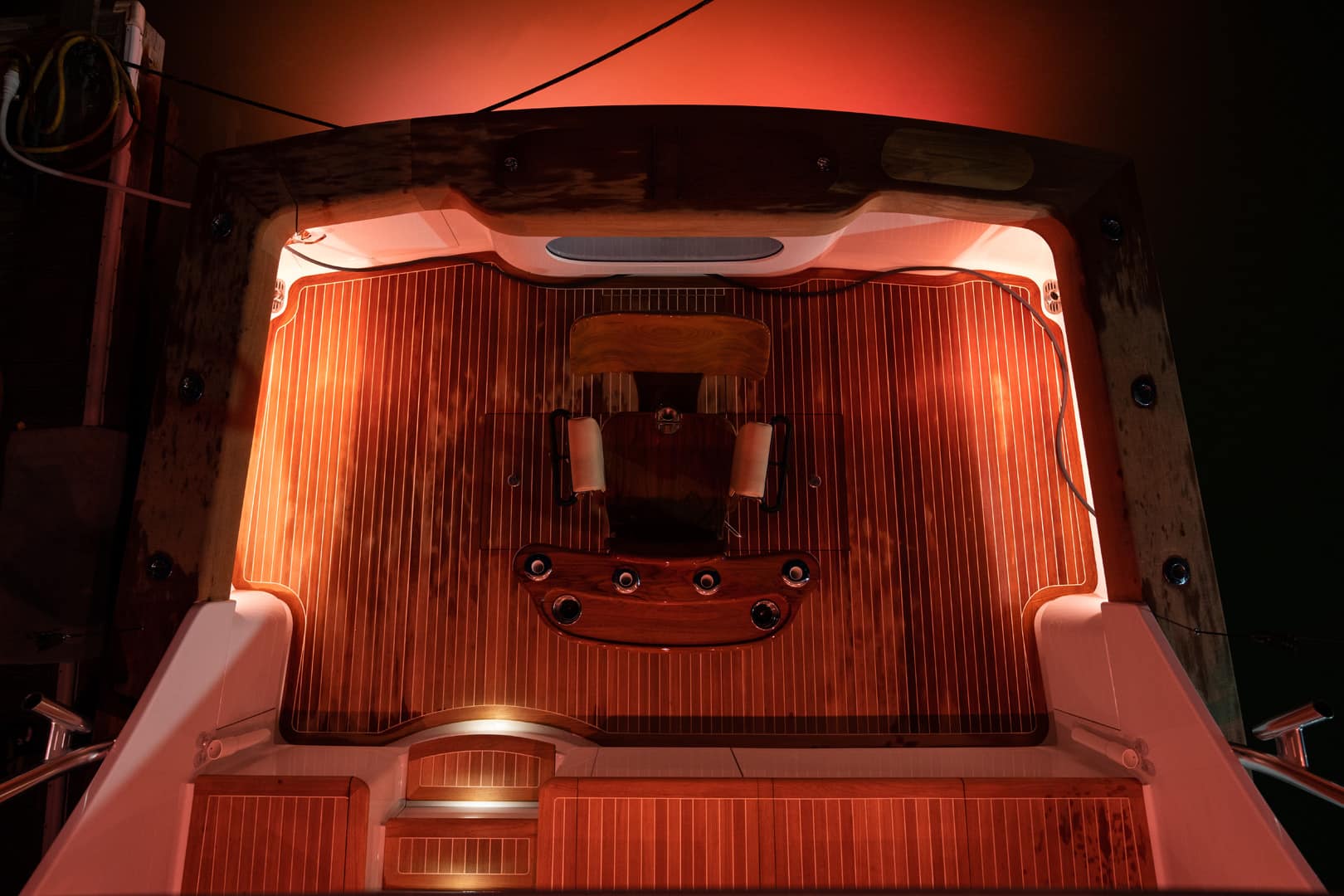

The mezzanine seating hides a 35-gallon stainless steel bait freezer and is joined by a tackle cabinet to starboard with a built-in Kenyon grill, and hidden gaff and mop storage. The centerpiece of the cockpit is a Release Marine fighting chair, which can be quickly interchanged with a Release Marine rocket launcher, specified by the owner to be dependent on the type of fishing they are engaged in. Hidden beneath teak hatches are dual 40-gallon stainless compartments – one refrigerated and one a freezer with bait trays. There is also a 50-gallon ice dump to starboard and a generous 120-gallon in-deck fish box with an automatic ice machine. The highlight of the transom is a large 100-gallon baitwell with a glass front joined by hidden tuna tubes beneath the transom covering boards.

Bridge

Jarrett Bay 56

Ascending to the flybridge invokes a sportfish convertible feel as you look upwards at the custom Palm Beach Towers 6-foot gap tuna tower and 44-foot Rupp outriggers. The flybridge features a peninsula console with three 22-inch Garmin displays joined by a signature teak helm pod and full AME electronics package, while the captain and mate sit comfortably in Release Marine helm chairs. Overhead, molded into the hardtop is a recessed electronics pod and hi-speed teaser reels.

The flybridge welcomes guests and crew to L-shaped seating forward of the peninsula console across from lounge seating to starboard – all with generous dry storage space underneath. The deck is coated in a durable, low-maintenance custom marine decking that includes laser engraved inlays and a faux teak look.

Extras

Jarrett Bay 56

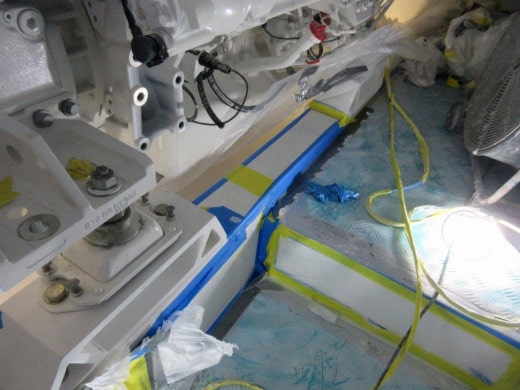

The 56′ Renegade benefits from Jarrett Bay’s legendary ride being complemented by a pair of high-tech MTU 10V-2000 M96 engines rated at 1,600mhp each, and a larger Seakeeper 18 gyro stabilizer. These systems are joined by a Northern Lights 25kW generator, FCI watermaker with spot-free rinse and many other components arranged for easy maintenance in the spacious engine room. The twin MTU engines provide a brisk 40-knot WOT and 34-knot cruise.
